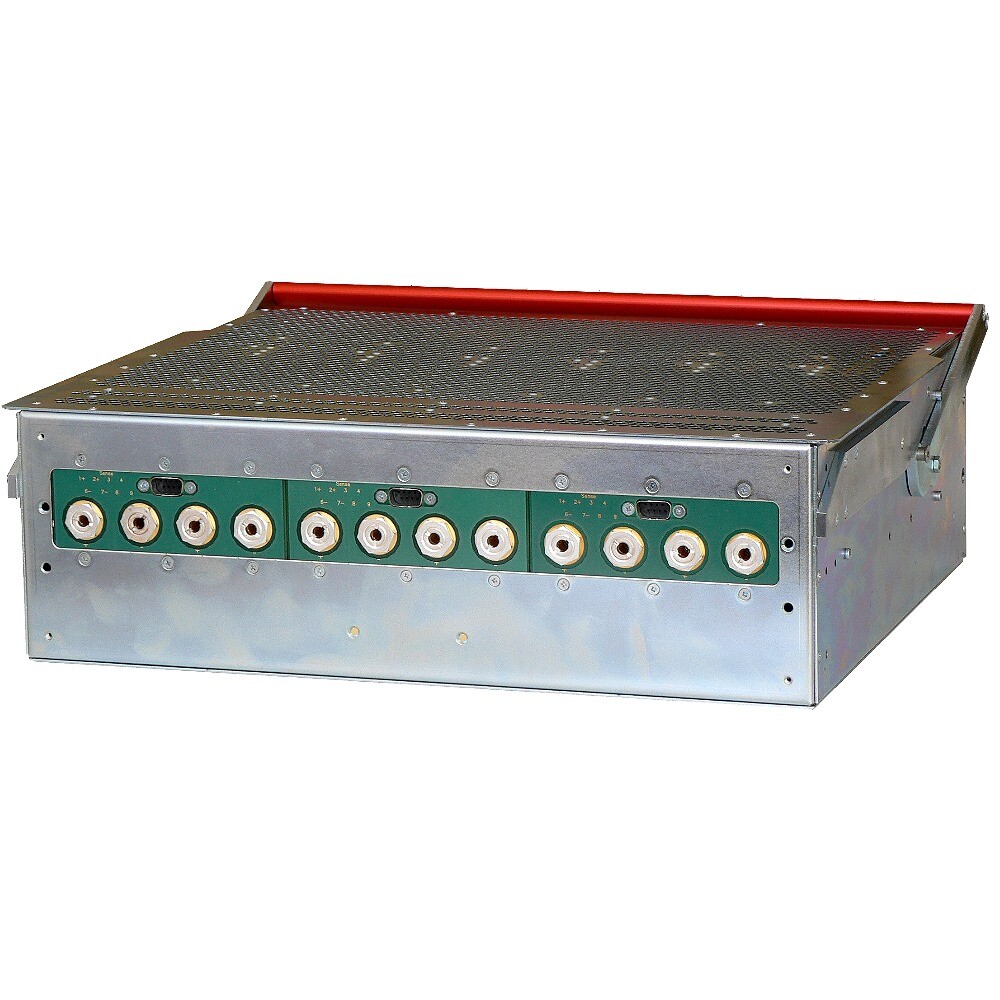

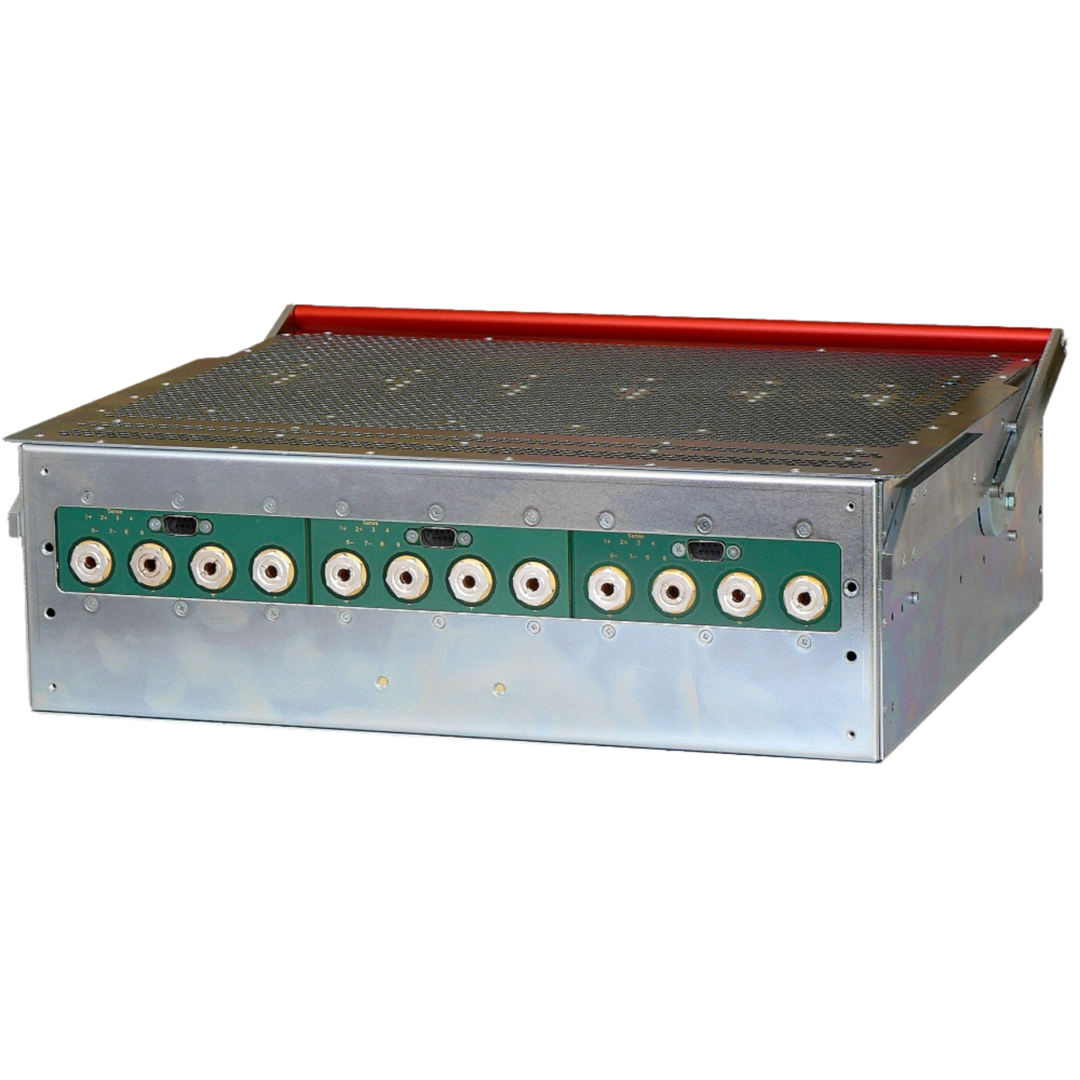

PL506 3U 6 Outputs 3000W
The PL506 is a compact, programmable 6-channel floating low-voltage power supply system delivering up to 3 kW total output power. It features high stability, remote monitoring via USB/Ethernet, and dynamic behavior optimization for varying cable distances
Specifications
- Up to 6 independent, floating DC outputs at 600 W each
- Total output power up to 3 kW in a 3U chassis
- Remote control and monitoring via USB, Ethernet, Web interface, SNMP
- Master-Slave mode for current boosting by paralleling channels
- Programmable voltage, current, temperature, ramp rate, and protection limits
- Auto-ranging AC input (94–265 VAC) with PFC and high efficiency (up to 90%)
The PL506 power supply system is highly modular and configurable to meet a wide range of application requirements. It consists of three core components: a 19” rack-mountable power bin, a power box with integrated control and communication interfaces, and up to six plug-in power modules.
Customers can choose between different mechanical configurations for the rack bin and power box, including options with integrated display and interlock functionality. The system supports up to six independent, floating DC output channels, each powered by a dedicated plug-in module. These modules are available in a variety of voltage and current configurations, allowing for precise adaptation to individual application needs.
Output voltages, current limits, ramp rates, protection thresholds, and operational modes can all be defined via software. Additionally, the PL506 supports dynamic behavior adjustment depending on cable length or load conditions, making it ideal for both local and remote powering scenarios.
Various optional features such as display integration, interlock signals, power-fail indication, or even direct water cooling can be added upon request. Custom configurations beyond standard options are available on demand, offering flexibility in terms of electrical parameters, floating voltage ranges, control interfaces, and mechanical integration.
Features
| Compliance | CE: EN 50081-1 (EN 55022-B), EN 50082-1/2, EN 60950 EMC: EN 61000-6-2/3, EN 55022 Class B Immunity: EN 61000-4 series (ESD, surge, burst, HF, etc.) |
| Power & Efficiency | Up to 3 kW total power, 600 W per channel Universal AC input: 94–265 VAC, 50/60 Hz, with active PFC Efficiency: 75% (2 V), >83% (>5 V), >90% (>48 V) Extremely low ripple & noise (<10–15 mVpp, <3 mV at 10 m wires) Temperature coefficient <0.2%/10 K; long-term stability <0.3% in 6 months MTBF >100,000 h (electronics), >65,000 h (blower) at 40 °C |
| Protection | Overvoltage protection at 125% (factory setting) Programmable current/voltage limits Trip-off within 3 ms for deviation, overload, thermal, UV/OV events Temperature shutdown: 90 °C (mains), 110 °C (modules), 70 °C (ambient) Interlock input (optional): disables all outputs when high or open |
| Control & Monitoring | USB, Ethernet (with Web/SNMP interface) Programmable dynamic behavior based on load distance (short/medium/long) Sense compensation and feedback via 9-pin Sub-D connectors Optional features: alphanumeric display, system reset, power-fail signal Closed-loop regulation, output ramping (default 50 ms, programmable) Floating output voltage adjustment via sensed feedback loop |
| Design & Components | Modular architecture with plug-in units in 19" rack-mountable 3U bin No-tool swap capability for power supply units Optional direct water cooling with same dimensions as air-cooled versions Output connectors: M6 threaded bolts (150 A rating) |
| Mechanical | Dimensions: 430 mm (W) × 133 mm (H, 3U) × 325 mm (D) Weight: 9.6–19 kg depending on module count Operating temperature: 0 – 50 °C, storage: –30 – 85 °C |
