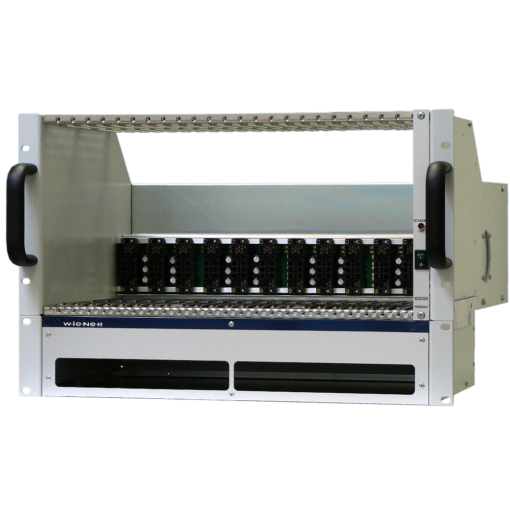

NIMpact 300W with Fan Tray
12-slot 19″ NIM Chassis with 300 W linear regulated power supply and integrated fan tray for enhanced cooling in demanding applications.
Specifications
- 300 W linear regulated power supply
- Outputs: ±6 V, ±12 V, ±24 V, optional 115 VAC
- 12 slots for NIM modules
- 5U height, 19″ rack-mount design
- Integrated fan tray for improved thermal management
- Low-noise performance for sensitive electronics
The NIMpact 300W with Fan Tray is a full-size 19″ rack-mount Chassis with 12 slots and a high-performance 300 W linear regulated power supply. It delivers stable outputs of ±6 V, ±12 V, ±24 V, and optional 115 VAC, meeting the needs of advanced laboratory and research setups. Fully compliant with the NIM standard, this version includes an integrated fan tray to provide efficient cooling, ensuring stable operation under high-load conditions. It is ideal for precision analogue and digital electronics such as amplifiers, ADCs, and timing modules that require low-noise and reliable power distribution.
Features
| Features | Compliant with NIM standard (AEC report TID20893) 12-slot rack-mount design 300 W linear regulated power supply Multiple voltage outputs: ±6 V, ±12 V, ±24 V, optional 115 VAC Integrated fan tray for enhanced cooling Rugged 5U 19″ construction Low-noise operation for precision equipment |
Downloads
技术参数
NIMpact 300W with Fan Tray Datasheet
[ nimpact-300w-with-fan-tray_kontron_datasheet.pdf, 330.14 KB, Aug.27.2025 ]
参考手册
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Variants
|

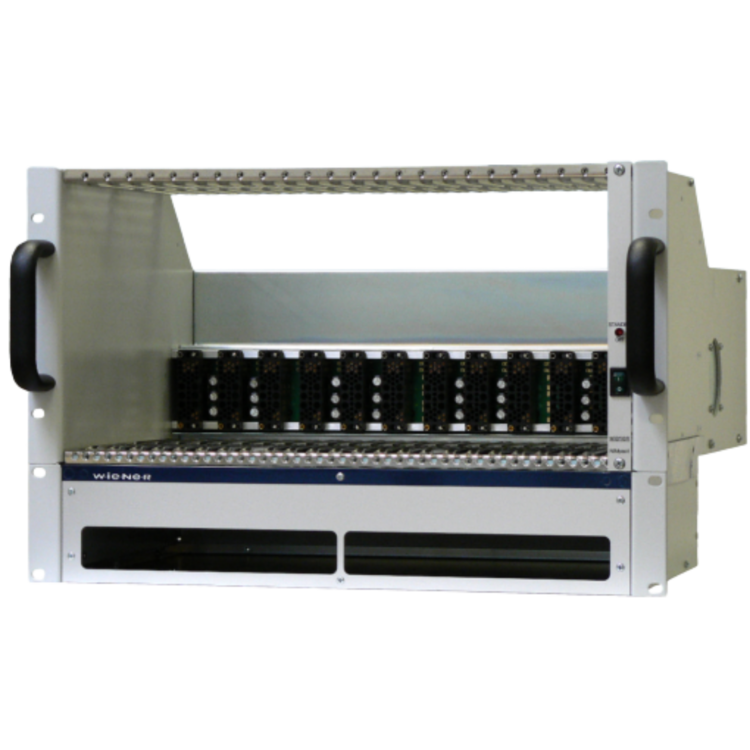

NIM_300_FT_X |
|
12 (10*) Slots, ±6 V/5 A, ±12 V/3 A, ±24 V/1.5 A, 115 VAC/0.25 A, 150 W (UEP15) |
