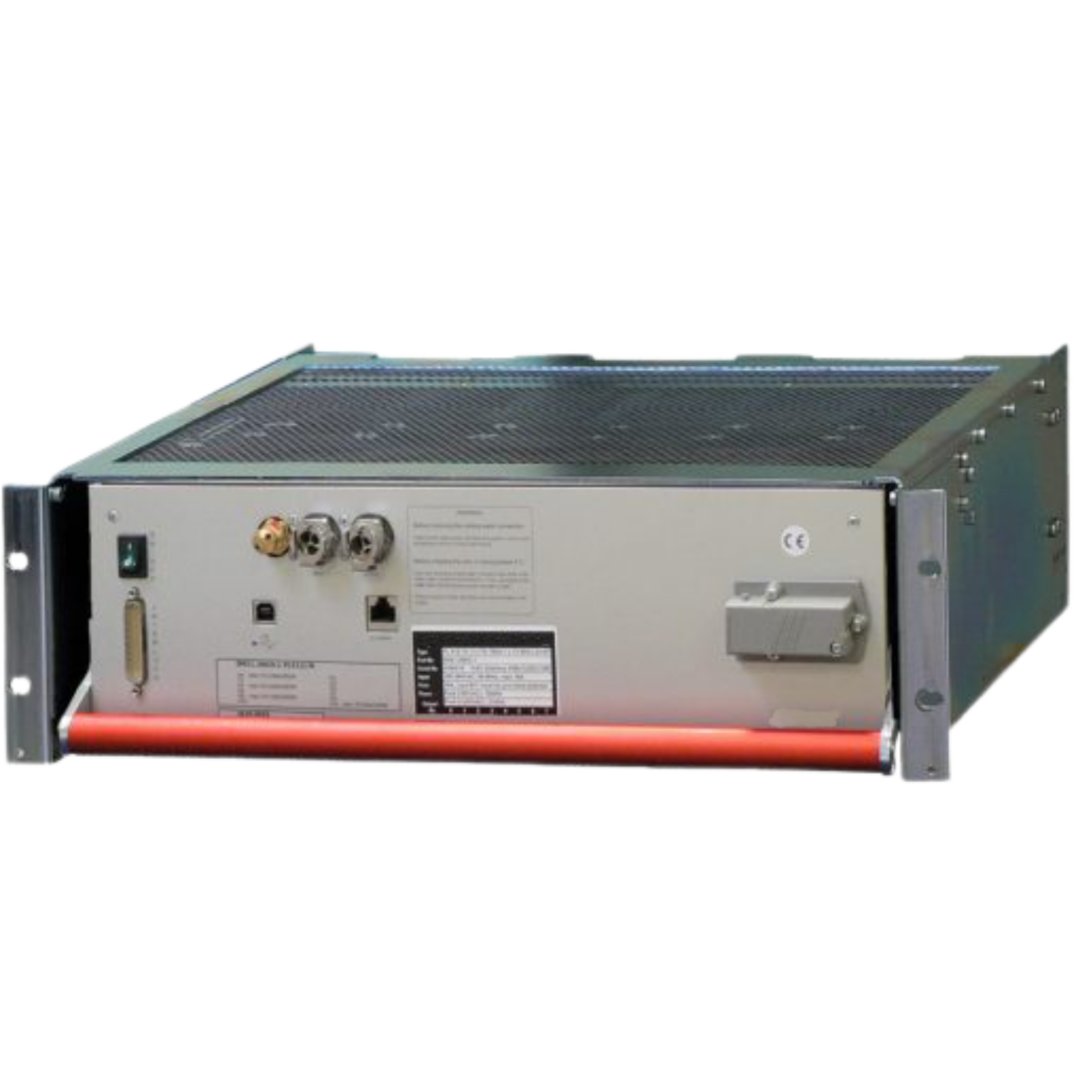

MARATON Moderate HE
The MARATON MHE is a rugged, radiation- and magnetic field-tolerant 12-channel low-voltage power supply, developed for CERN’s LHC.
Specifications
- Up to 12 low-voltage DC channels
- Output power up to 3.6 kW (water cooled)
- Magnetic field tolerance up to 1200G
- Radiation hardness up to 30 Gy
- CAN-bus interface
- Redundant and modular architecture
It features advanced CANbus monitoring, high modularity, and reliable operation under hostile environmental conditions.
Designed for moderate radiation environments, the MARATON power supply system delivers high reliability through shielded components, water cooling, and redundant control. The plug-in module design supports easy service and scalability, making it ideal for demanding research facilities.
Features
| Compliance | CE EN 60950, EN 50081-1, EN 50082-1/2, UL 1950 Safety and EMC compliant for industrial environments |
| Power & Efficiency | Up to 3 kW total output (air cooled), 3.6 kW (water cooled) High-efficiency modules: 65% (low voltage) up to 90% (>48 V) |
| Protection | Programmable overcurrent, overvoltage, undervoltage, overtemperature protection Fast trip-off response per channel, group or system-wide |
| Control & Monitoring | Fully microprocessor controlled Programmable trip levels, ramp rates, thresholds CAN-bus interface for remote control (Ethernet/USB optional) |
| Design & Components | Modular 19″ system: 3U power bin with plug-in box Up to 12 independent, floating LV channels Water-cooled or air-cooled versions with interchangeable modules |
| Mechanical | Dimensions: 434 × 132 × 325 mm Weight: 31.5 kg Quick-swap “Easy Lever” mechanism, rear terminal block, optional interlock |
Downloads
技术参数
MARATON Moderate HE Datasheet
[ maraton-moderate-he-datasheet.pdf, 343.63 KB, Aug.07.2025 ]
参考手册
MARATON Moderate HE Manual
[ maraton-moderate-he-manual.pdf, 10.14 MB, Aug.07.2025 ]
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Variants
|

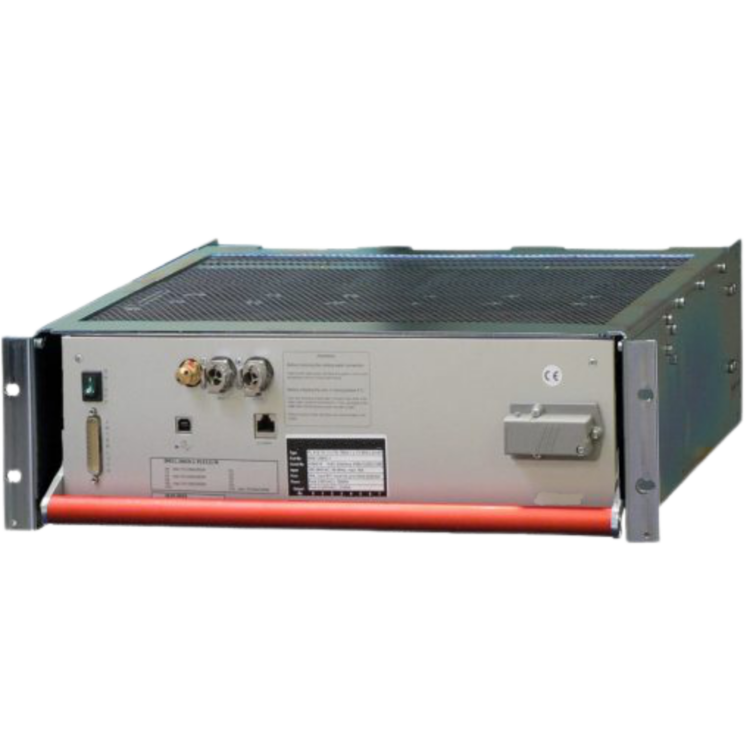

MDC-02/07 AL Type (up to 300G) |
|
2x 2–7V, 2x 55A or 1x 110A, 660W total | |
|
MDC-07/16 AL Type (up to 300G) |
|
2x 5–16V, 2x 22A or 1x 44A, 660W total | |
|
MDC-07/24 AL Type (up to 300G) |
|
2x 7–24V, 2x 11.5A or 1x 23A, 550W total | |
|
MDC-30/60 AL Type (up to 300G) |
|
2x 30–60V, 2x 6.6A or 1x 13.2A, 660W total | |
|
MDM-02/07 FE Type (up to 1200G) |
|
2x 2–7V, 2x 55A or 1x 110A, 660W total | |
|
MDM-07/16 FE Type (up to 1200G) |
|
2x 5–16V, 2x 22A or 1x 44A, 660W total | |
|
MDM-07/24 FE Type (up to 1200G) |
|
2x 7–24V, 2x 11.5A or 1x 23A, 550W total | |
|
MDM-30/60 FE Type (up to 1200G) |
|
2x 30–60V, 2x 6.6A or 1x 13.2A, 660W total |
