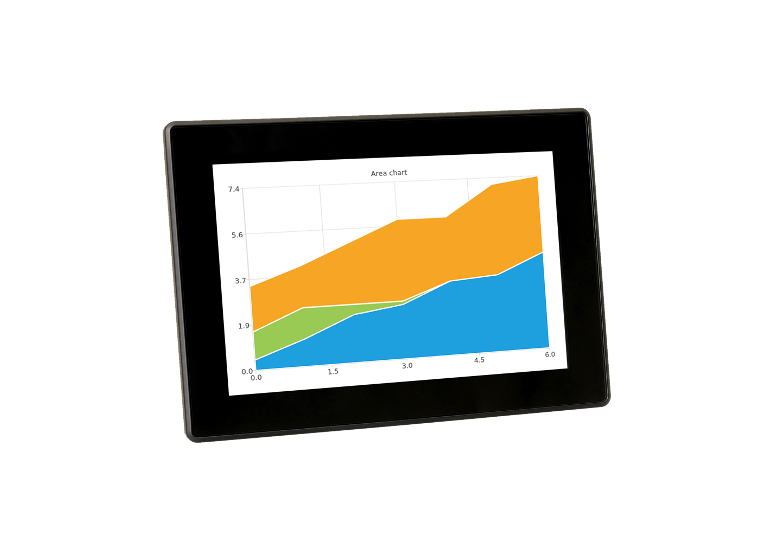

Display-Line DL 7“ i.MX8M Mini
High quality and modern 7" IPS touch display
Specifications
- NXP i.MX8M Mini, 4x Arm® Cortex®-A53 @1.6 GHz
- PCAB Multitouch-Panel
- 7” IPS-Display, 1024 x 600 Pixel
- Front frame aluminium, front-side protection class IP65
Product Information
The DL 7" i.MX8M Mini Touch Panel from Kontron Electronics impresses with its modern, high-quality design featuring a robust aluminum front frame, and is equipped with a 7" IPS display (1024 x 600 pixels, PCAP multitouch). It delivers excellent optical characteristics and a compact form factor, making it ideal for installation in control cabinets, operator panels, and almost any mounting situation.
Performance & Architecture
The Panel from the Display-Line series is based on the powerful i.MX8M Mini processor board, making it ideal for graphics-intensive 3D applications and demanding automation tasks. The embedded Linux operating system allows for flexible and versatile use as a foundation for various applications without any additional license fees.
Communication Interfaces
Thanks to its versatile communication options, the DL 7" i.MX8M Mini can be easily integrated into various industrial infrastructures and supports a wide range of applications.
Application & Advantages
Typical areas of application include mechanical and plant engineering, building technology, IoT/Industry 4.0, and logistics. The advantages include long-term availability, flexible configuration options, compatibility with various mounting situations, and an attractive price-performance ratio.
Features
| Function | FRONT: Aluminium front frame DISPLAY: 7“ IPS, 1024 x 600 Pixel 450 cd/m² TOUCH: PCAP Multitouch |
| Power Supply | 24V DC ±20 % |
| Power Consumption | Linux running <6 W |
| RTC BUFFERING | CR1220 |
| Debug | 1x Console |
| Dimensions (W x H x D) | Alu front: 200.1 x 131.9 x 46.5 mm |
| Temperature range | 0 °C...+55 °C |
| Protection Class | Front IP65, back IP20 |
| CPU | NXP i.MX8M Mini 4x Arm® Cortex®-A53 @1,6 GHz, 1x Arm® Cortex®-M4 @400 MHz |
| LPDDR4 | 4 GByte (Options: 1 GByte, 2 GByte) |
| NOR-FLASH | 2 MByte |
| eMMC | 32 GByte (Options: 4 GByte up to 64 GByte) |
| SD CARD | 1x microSD Card Slot |
| NV MEMORY | 8 kB (64 kb) EERAM |
| Ethernet | 1x Gbit/s, 1x 10/100 Mbits/s |
| USB | 2x 2.0 Host, 1x 2.0 OTG |
| Serial | 1x RS232, 1x RS485 |
| CAN | 1x CAN 2.0 B |
| DIO | 4x DIO (24V/up to 800mA) |
| Bootloader | U-Boot |
| Operating System | Embedded Linux (Yocto Distribution) |
| RTC | 5ppm accuracy |
