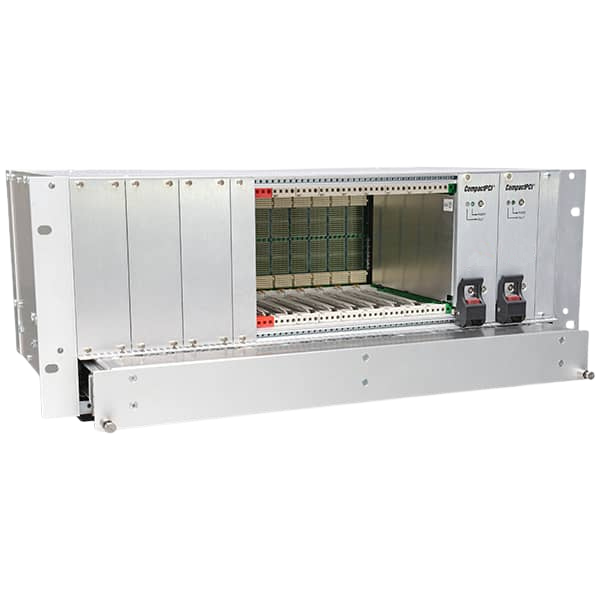

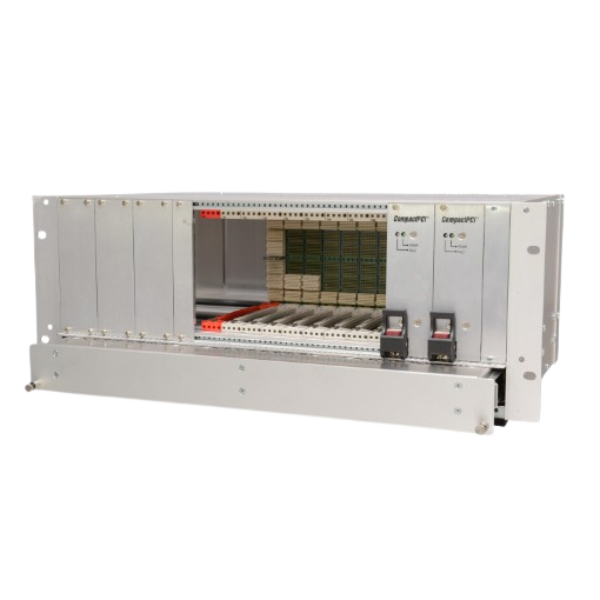

cPCI Serial 4U 84HP 9 Slots

A high-density modular system designed for demanding embedded applications

Specifications

Form Factor: 4U height, 84HP width
Slots: 9 slots on a 3U backplane (system slot left, no rear I/O)
Backplane Topology: Single-star PCIe Gen3 and Gigabit Ethernet
Power Supply: Dual 300W CompactPCI Serial supplies

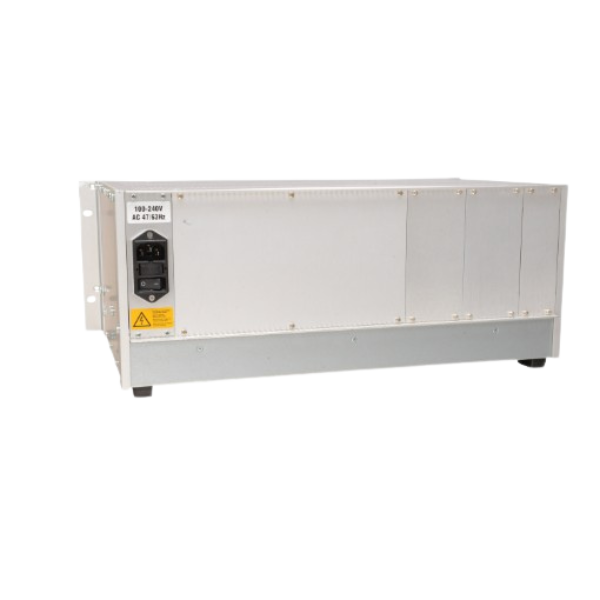

Input Voltage: 90–264VAC, 47–63Hz
Output Voltages: +12V @ 25A, 5V Standby @ 2.5A
Cooling: 1U removable fan tray with 3 x 120mm fans (12V, 120CFM, 48dB/A)
Airflow Direction: Bottom to top
Mounting: 19"" rack-mountable
Compliance: IEEE 1101.1, 1101.10/11; IEC 60297-3-101/102/103

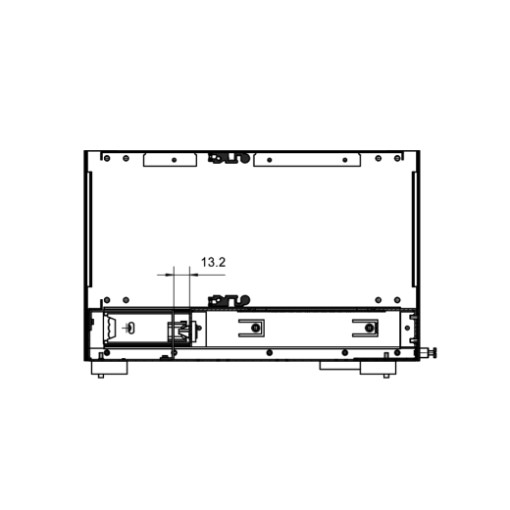

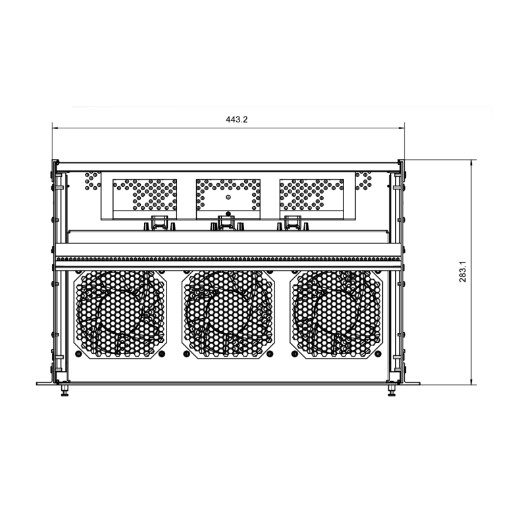

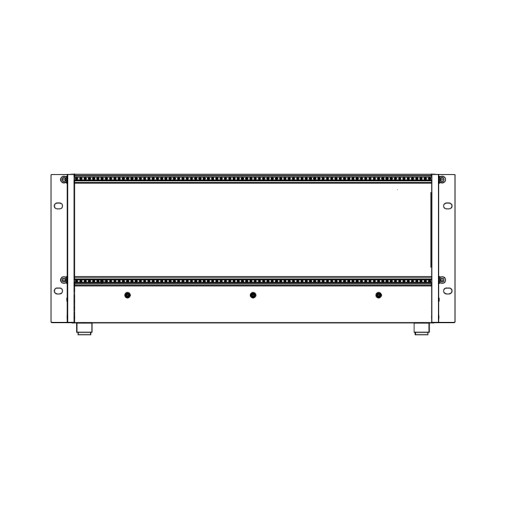

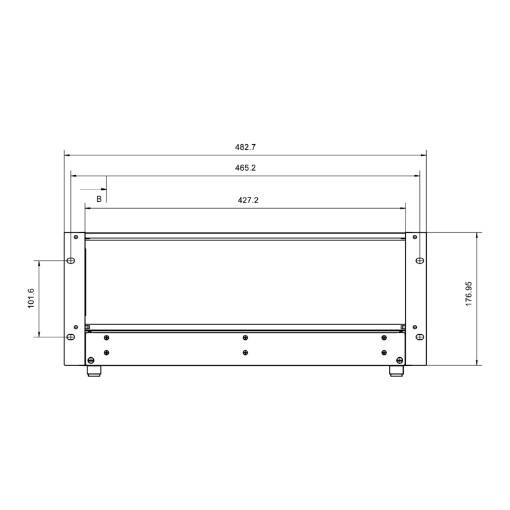

Dimensions: Depth: 483.2 mm; Height: 177.8 mm; Width: 420.2 mm
Weight: Approximately 10 kg
Part Number: LMH0000900

Download Datasheet

The cPCI Serial 4U 84HP 9 Slots chassis is a high-density modular system designed for demanding embedded applications. It features a 3U, 9-slot PCIe Gen3 backplane with a single-star topology, powered by two 300W cPCI Serial power supplies. This configuration ensures robust performance and scalability for complex systems.

The cPCI Serial 4U 84HP 9 Slots chassis offers a compact yet powerful solution for embedded systems requiring high-density configurations. With its dual 300W power supplies and efficient cooling system, it ensures reliable operation in demanding environments. The chassis is fully compliant with industry standards, making it suitable for a wide range of applications.

Features

High-density 9-slot configuration in a 4U chassis

Dual 300W power supplies for enhanced reliability

Efficient bottom-to-top airflow cooling system

Compliant with IEEE and IEC standards

19"" rack-mountable for easy integration

Suitable for demanding embedded applications
