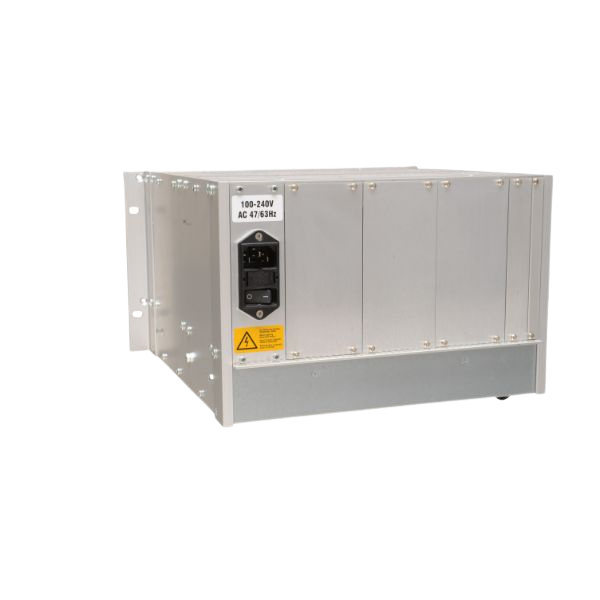

cPCI Serial 4U 50HP 9 Slots
A high-density CompactPCI Serial (PICMG S.0) system
Specifications
- Form Factor: 4U height, 50 HP width
- Slot Count: 9 slots on 3U backplane, system slot left (no rear I/O)
- Backplane Topology: Single-star Gigabit Ethernet + PCIe Gen3 (no mesh)
- Power Supply: 300 W ATX (or optional cPCI Serial)
- Input Voltage: 90–264 VAC, 47–63 Hz
- Output Voltages / Currents: 12 V @ 24 A , 3.3 V @ 17 A , 5 V @ 18 A , –12 V @ 0.3 A
- Cooling / Fans: 1U removable fan tray with 2 fans (12 V, 92 mm)
- Airflow: Bottom to top

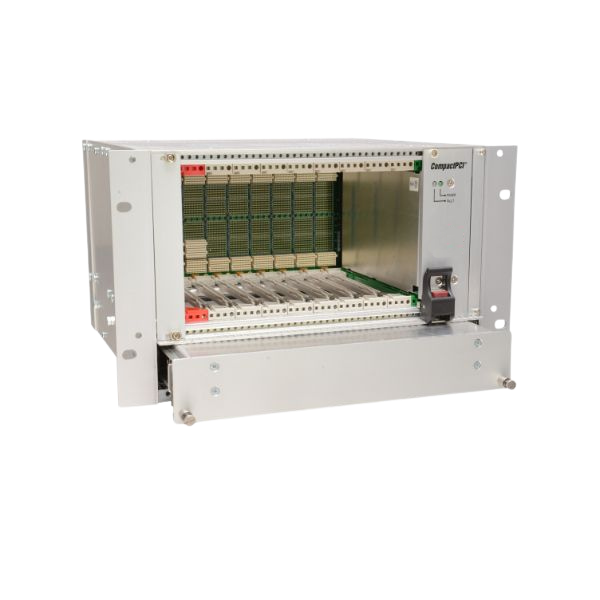

The cPCI Serial 4U 50HP 9-slot chassis is a high-density CompactPCI Serial (PICMG S.0) system, featuring a 3U 9-slot PCIe Gen3 backplane in a single-star topology and powered by a 300 W ATX (or cPCI Serial) power supply.
CompactPCI Serial (CPCI S.0) further evolves the original parallel CompactPCI (PICMG 2.0) paradigm by exclusively relying on serial point-to-point links for PCI Express and Ethernet. Hartmann’s cPCI Serial chassis adopt a modular architecture enriched with a single-star topology, combining system scalability with strong performance.
This 4U, 50 HP chassis supports nine plug-in cards, making it suitable for demanding, high-density embedded systems needing many peripheral modules. Compliance with IEEE and IEC standards, coupled with tested resistance to vibration, shock, and railway environment stress, allows deployment in challenging industrial conditions. The 300 W ATX (or optionally cPCI Serial) power supply delivers stable power to all modules, and the removable dual fan tray enforces a consistent bottom-to-top airflow path for efficient thermal management.
Features
| Features | Compliance / Standards: IEEE 1101.1, IEEE 1101.10/11; IEC 60297-3-101 / -102 / -103 Ruggedization: Vibration per MIL-STD-810F 514.5C, shock per MIL-STD-810F 515.5; railway class EN 50155 / EN 1373 support Mounting: Rack-mount style (vertical orientation) Other: Comes assembled, wired, and tested. Alternative backplane variations available on request. Ordering / Part Number: LMH0000850 for 300 W ATX version; or LMH0000631 for 300 W cPCI Serial version Single-star backplane with 9 slots supporting GbE and PCIe Gen3 High density: 50 HP width packing nine cards in 4U height Robust 300 W power supply option, ATX or cPCI Serial Removable 1U fan tray with two 92 mm fans for flexible cooling Bottom-to-top airflow ensures efficient heat removal Complete system delivered assembled, wired, and tested Rugged design meeting MIL-STD vibration/shock and railway standards Compliance with IEEE / IEC mechanical & interoperability standards LVDSystems Custom backplane or I/O configurations available on request |
