COMe-mEL10 (E2) New

COM Express® mini Type 10 with Intel Atom® x6000E, Pentium® and Celeron® Series
Mouseover Zoom loading...
Specifications
  • Low-Power – Performance/Watt optimized form factor solution
  • Up to 16 GByte LPDDR4 memory down (In-Band ECC)
  • 2x USB 3.1/2.0, 6x USB 2.0, USB client optional, 2x SATA, eMMC Flash
  • 1GbE (optional 2.5GbE) with TSN support
  • Industrial grade temperature
Download Datasheet Buy now

The COMe-mEL10 (E2) is a credit card sized Computer-on-Modules platform based on the Intel® Atom® x6000 Series, Pentium® and Celeron® processors.

The COMe-mEL10 (E2) performance range of COM Express mini modules is highly scalable and covers the entire range of Intel's latest IoT-ready embedded processors. This includes the Intel Atom x6000 series, as well as Intel Pentium and Intel Celeron processor. LPDDR4-4267 up to 16GB is offered, In-Band ECC support depends on the processor capability.

The modules combine state-of-the-art image processing and graphics capabilities with extensive real-time computing power in an energy-efficient and standardized Type 10 Computer-on-Module mini form factor. Users benefit from a significantly improved computing performance, an impressive performance-per-watt ratio and the long-term availability inherent in all Kontron embedded solutions.

The COMe-mEL10 (E2) comes with support for Windows 10, Linux and VxWorks 7.x

Features

Compliance COM Express® mini, Pin-out Type 10 - COM.0 R3.0
Dimension (H x W) 84 mm x 55 mm
CPU COMe-mEL10:

Intel® Celeron® J6413, 4C, 1.8/3.0GHz, 16EU, 10W

Intel® Pentium® J6426, 4C, 2.0/3.0GHz, 32EU, 10W

Intel® Celeron® N6211, 2C, 1.2/3.0GHz, 16EU, 6.5W

Intel® Pentium® N6415, 4C, 1.2/3.0GHz, 16EU, 6.5W

COMe-mEL10 E2:

Intel® Atom® x6211E, 2C, 1.3/3.0GHz, 16EU, 6W

Intel® Atom® x6413E, 4C, 1.5/3.0GHz, 16EU, 9W

Intel® Atom® x6425E, 4C, 2.0/3.0GHz, 32EU, 12W

Intel® Atom® x6212RE, 2C, 1.2GHz/-, 16EU, 6W

Intel® Atom® x6214RE, 2C, 1.4GHz/-, 16EU, 6W

Intel® Atom® x6414RE, 4C, 1.5GHz/-, 16EU, 9W

Intel® Atom® x6416RE, 4C, 1.7GHz/-, 16EU, 9W

Intel® Atom® x6425RE, 4C, 1.9GHz/-, 32EU, 12W
Chipset Integrated in SoC
Main Memory Up to 16 GByte LPDDR4-4267 memory down (In-Band ECC)
Graphics Controller SOC: Intel® HD Gfx Gen11: LVDS/eDP, 1x DP++, up to 4K
Ethernet Controller SOC + LAN PHY GPY115 (GPY215 on request)
Ethernet 1GBit Ethernet with GPY115 (2.5GBit on request with GPY215)
Storage 2x SATA 6 Gb/s
Flash Onboard eMMC build option:

- up to 84 GByte eMMC pSLC

- up to 256 GByte eMMC TLC
PCI Express PCIe Gen 3.0 - PCIe lane configurations: 4 x1, 2 x1 + 1 x2, 2 x2
Display DDI: DP++, LVDS: Single Channel 18/24 bit or eDP 1.3
USB 2x USB 3.1 (incl. USB 2.0) + 6x USB 2.0, Port 7 is dual role (Client/Host)
Serial 2x serial interface (RX / TX only)
Audio Intel® High Definition Audio
Common Features SPI, LPC, SMB, Fast I²C, Staged Watchdog, RTC
Special Features Industrial grade temperature
Options eMMC Flash configuration (up to 84 GByte pSLC, up to 256 GByte TLC),

eDP instead of LVDS,

General Purpose SPI instead of Boot SP
I, USB client, Seoarate TPM 2.0 chip,
de-populated LAN PHY
Power Management ACPI 6.0
Power Supply 4.75 V – 20 V Wide Range, Single Supply Power
BIOS AMI Aptio V
Operating System Microsoft® Windows 11 IoT LTSC, Microsoft® Windows 10 IoT LTSC, Linux, VxWorks
Temperature COMe-mEL10- commercial temperature:
0° C to +60° C operating, -30° C to +85° C non-operating
COMe-mEL10 E2 - industrial temperature:
-40° C to +85° C operating, -40° C to +85° C non-operating
Humidity 93% relative Humidity at 40°C, non-condensing (according to IEC 60068-2-78)
Supported Modules commercial temperature:

COMe-mEL10 (34012-xxxx-xx-x)


industrial temperature:

COMe-mEL10 E2 (34013-xxxx-xx-x)

Downloads

Solution Brief

Intel Solution Brief: Computer-on-Module Flexibility at the Edge
Kontron COM Express® and COM-HPC® modules with 13th Gen Intel® Core™ mobile processors deliver powerful performance, AI, and graphics with portfolio flexibility for industrial-grade deployments.
[ 18933-1-intel-rpl-p-kontron-solution-brief-v4.pdf, 1.67 MB, Mar.03.2023 ]

技术参数

Datasheet COMe-mEL10
[ come-mel10_datasheet.pdf, 441.23 KB, Dec.02.2024 ]

参考手册

COMe-mEL10 (E2) User Guide
Rev 1.4
[ come-mel10_user-guide_rev_1-4_2024-1126.pdf, 3.85 MB, Nov.29.2024 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

白皮书

Modules and Motherboards WP [restrictions apply]

Robotic-Assisted Surgery White Paper [restrictions apply]

应用案例

Autonomous Driving
Read how our COM Express® Module is working perfect for application from b-plus with its flexibility, bandwith, reliability and the required graphics.
[ uc_b-plus_eu.pdf, 4.78 MB, May.26.2021 ]

COM Express® Basic for Autonomous Transportation in Rugged Environments
Implementing Kontron’s latest COMe® Basic based on Intel’s® 11th generation Xeon® processors and ECC memory provided the optimum power and performance
[ adas_en_use-case_kontron.pdf, 1.54 MB, Oct.11.2022 ]

The tough choice of Processors
Solving challenges in selecting computer boards & modules for IIoT projects. In this article we support you to make the right choice for your application: To find the best balance of processing power, graphics capabilities and connectivity on the one hand and size, power consumption, and cost on the other.
[ artikel_processor-choice_eu-1-.pdf, 4.42 MB, Apr.20.2023 ]

Tech Spec Sheet

Tech Specs COM EXPRESS®
[ tech-spec_comexpress.pdf, 7.08 MB, Apr.04.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section

Variants

COMe-mEL10 N6211 4G/16G
34012-0416-N1-2
COM Express® mini pin-out type 10 with Intel® Celeron® N6211, 2 core, 1.2GHz, 4GB LPDDR4 3200 MT/s memory down, GPY115 LAN, 16GB eMMC MLC, commercial temperature
COMe-mEL10 J6426 4G/32G
34012-0432-J2-4
COM Express® mini pin-out type 10 with Intel® Pentium® J6426, 4 core, 2.0GHz, 4GB LPDDR4 3733 MT/s memory down, GPY115 LAN, 32GB eMMC MLC, commercial temperature
COMe-mEL10 E2 x6212RE 4G/16G
34013-0416-R1-2
COM Express® mini pin-out type 10 with Intel® Atom® x6212RE, 2 core, 1.2GHz, 4GB LPDDR4 3200 MT/s memory down, GPY115 LAN,16GB eMMC MLC, industrial temperature
COMe-mEL10 E2 x6414RE 4G/32G
34013-0432-R1-4
COM Express® mini pin-out type 10 with Intel® Atom® x6414RE, 4 core, 1.5GHz, 4GB LPDDR4 3200 MT/s memory down, GPY115 LAN, 32GB eMMC MLC, industrial temperature
COMe-mEL10 E2 x6425RE 8G/32G
34013-0832-R2-4
COM Express® mini pin-out type 10 with Intel® Atom® x6425RE, 4 core, 1.9GHz, 8GB LPDDR4 4267 MT/s memory down, GPY115 LAN, 32GB eMMC MLC, industrial temperature

Accessories

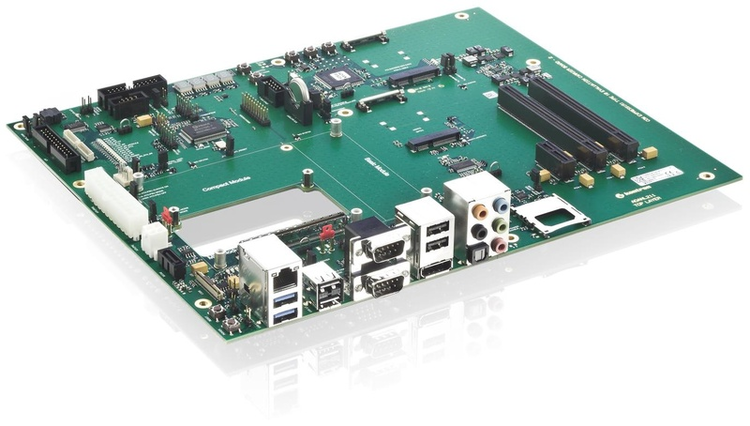

COMe Eval Carrier2 T10
