9U VME430-6023

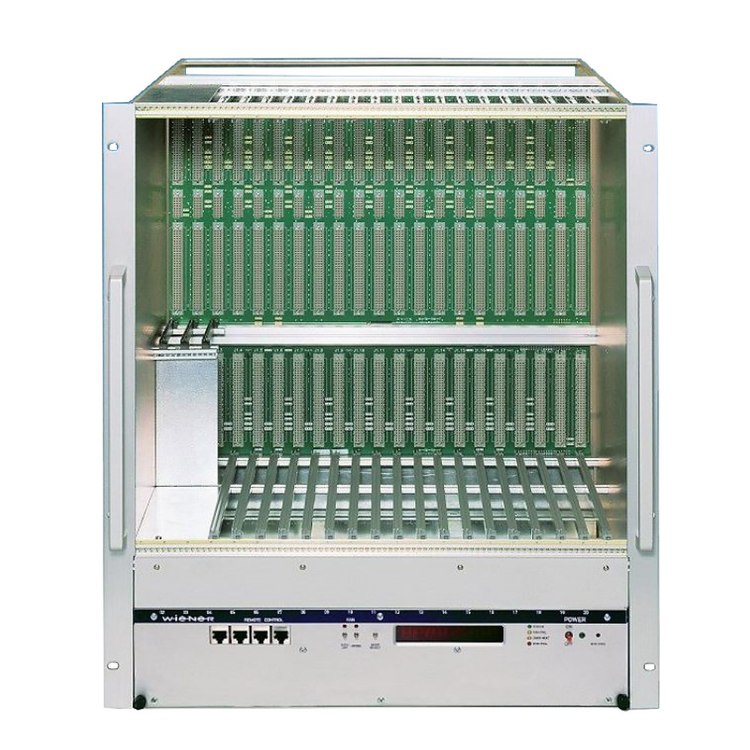

Advanced 21-slot 9U VME/VME430 Chassis with modular airflow design and bottom-mounted PSU.
Specifications
- Mechanics: 9U × 400 mm, IEEE 1101.10 compliant
- Slots: 21 VME/VME430 (J1/Jaux/J2)
- Power Supply: up to 1000 W, microprocessor-controlled
- Ripple: typ. < 10 mV(pp) or < 3 mV(rms)
- Interfaces: Ethernet, RS232, CAN-bus
- Cooling: fan tray with integrated air compression chamber
The VME430-6023 full-size 9U Chassis is optimized for high-energy physics experiments and advanced instrumentation using large 9U cards. Its modular architecture integrates a bin, fan tray, and PSU with a dedicated 1U air compression chamber to ensure effective cooling. The power supply is mounted at the bottom behind the fan tray, leaving the backplane rear fully accessible for service. Together with remote monitoring via Ethernet, RS232, and CAN-bus, the VME430-6023 provides high reliability and long-term operation for mission-critical environments.
Features
| Features | Modular design: bin, fan tray, bottom-mounted PSU Backplane: 21-slot VME430, 10-layer PCB with active termination Cooling: Optimized airflow via compression chamber and controlled fans Interfaces: Ethernet, RS232, CAN-bus for monitoring and diagnostics Protection: Overvoltage, undervoltage, overload, overheat, fan fail detection Compliance: CE, EN 60950, ISO 380, VDE 0805, UL 1950 Operation: 0–50 °C, storage –30 °C to +85 °C |
Downloads
技术参数
9U VME430 6023 Full Size Chassis
[ vme-mini_kontron_datasheet.pdf, 439.39 KB, Aug.30.2025 ]
参考手册
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
