/ 6U VME64x 554-x Portable Chassis
6U VME64x 554-x Portable Chassis
Portable 5-slot VME/VME64 mini crate with redundant hot-swappable power supplies, integrated shelf manager, and rear-to-rear cooling.
Specifications
- Mechanics: 6U × 160 mm, IEEE 1101.10 compliant, EMC/ESD-protected
- Slots: 5 VME/VME64 (no transition cage)
- Power Supply: One or two hot-swappable 250 W cPCI modules (300 W on request), redundant operation possible
- Ripple: typ. < 30 mV(pp), < 3 mV(rms)
- Interfaces: Shelf Manager with Ethernet and USB for local/remote monitoring/control
- Cooling: Silent DC blower, rear-to-rear airflow, temperature-controlled
The VME554-x portable mini crate is specifically designed for data acquisition, testing, and debugging tasks where mobility and reliability are essential. Supporting up to five standard 6U × 160 mm VME or VME64 modules, it comes housed in a lightweight yet robust portable chassis. Power is provided by one or two front-pluggable, hot-swappable 250 W cPCI modules, with optional redundancy for uninterrupted operation. The integrated WIENER CML Shelf Manager allows comprehensive local and remote monitoring and control of voltages, currents, fan speed, and temperature, as well as remote on/off, system reset, and programmable user I/O. Its silent rear-to-rear airflow cooling ensures stable operation even under continuous loads, while multiple protection systems safeguard both crate and modules. This compact unit is ideal for laboratory, field, or industrial applications requiring a versatile and portable VME platform.
| Mechanical Design |
Rugged, lightweight desktop housing for 6U × 160 mm VME/VME64 modules |
| Backplane |
5-slot monolithic VME/VME64, no transition cage |
| Power |
One or two hot-swappable 250 W cPCI modules, redundant operation; 300 W modules available on request |
| Monitoring & Control |
Integrated WIENER CML Shelf Manager with high-visibility alphanumeric LED display and two status LEDs |
| Remote Interfaces |
thernet and USB for remote crate management, including power supply, fan control, SYSRES, and thermal monitoring |
| Protection |
Programmable under/over-voltage and over-current trip points, active DC output discharge, broken sense line detection |
| Cooling |
Silent DC blower with rear-to-rear airflow, temperature-based speed control; fan MTBF > 60 000 h (at 40 ° |
| Environmental |
Operating temperature 0–40 °C without derating, storage –30 °C to +85 °C, humidity 30–80% non-condensing |
| Compliance |
CE conformity, meets EN 60950, ISO 380, VDE 0805, UL 1950, C22.2.950 standards |
| Construction |
14″ (337 mm) × 5U (200 mm) × 325 mm (D), approx. 10 kg weight |
| Efficiency |
Up to 80% depending on installed output configuration |

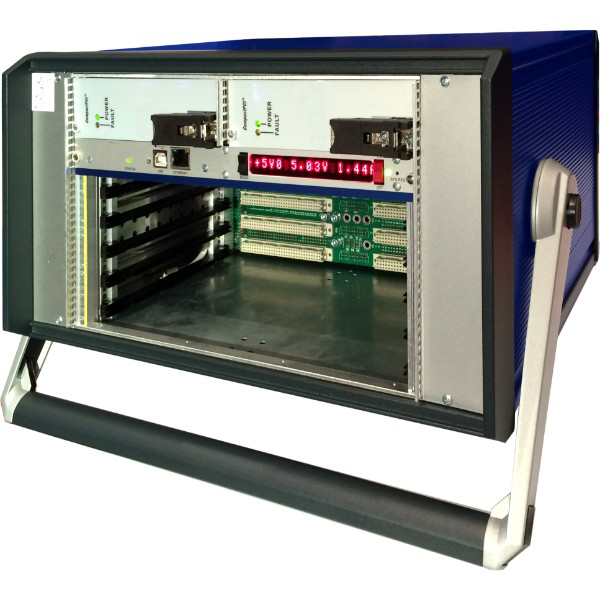

VME 554_1 – Backplane
|
|
J1/J2 VME64, +5V/33A, +3.3V/(33A)*, +12V/6A, –12V/1A |
|
VME 554_2 – Backplane
|
|
J1/J2 VME64, +5V/66A, +3.3V/(66A)*, +12V/12A, –12V/2A |
|
