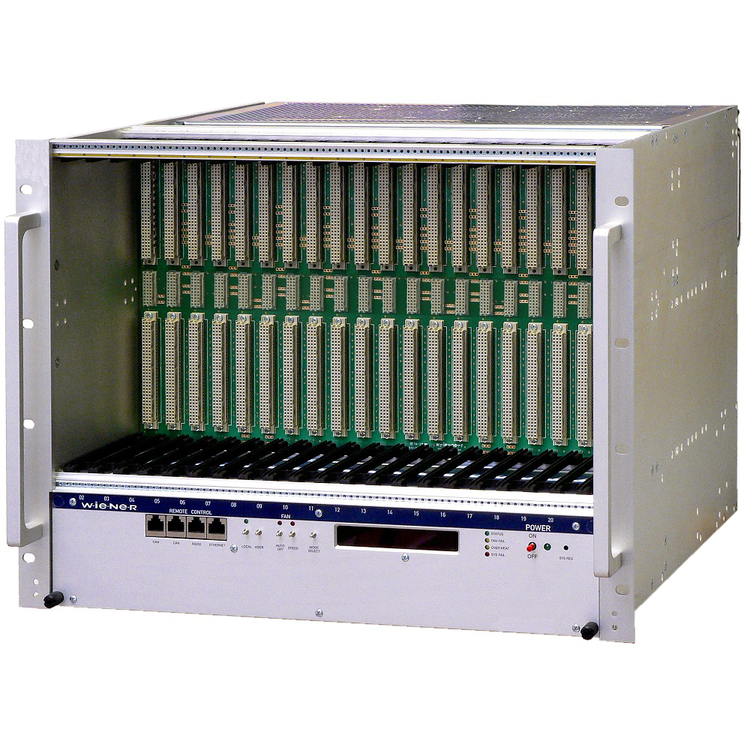

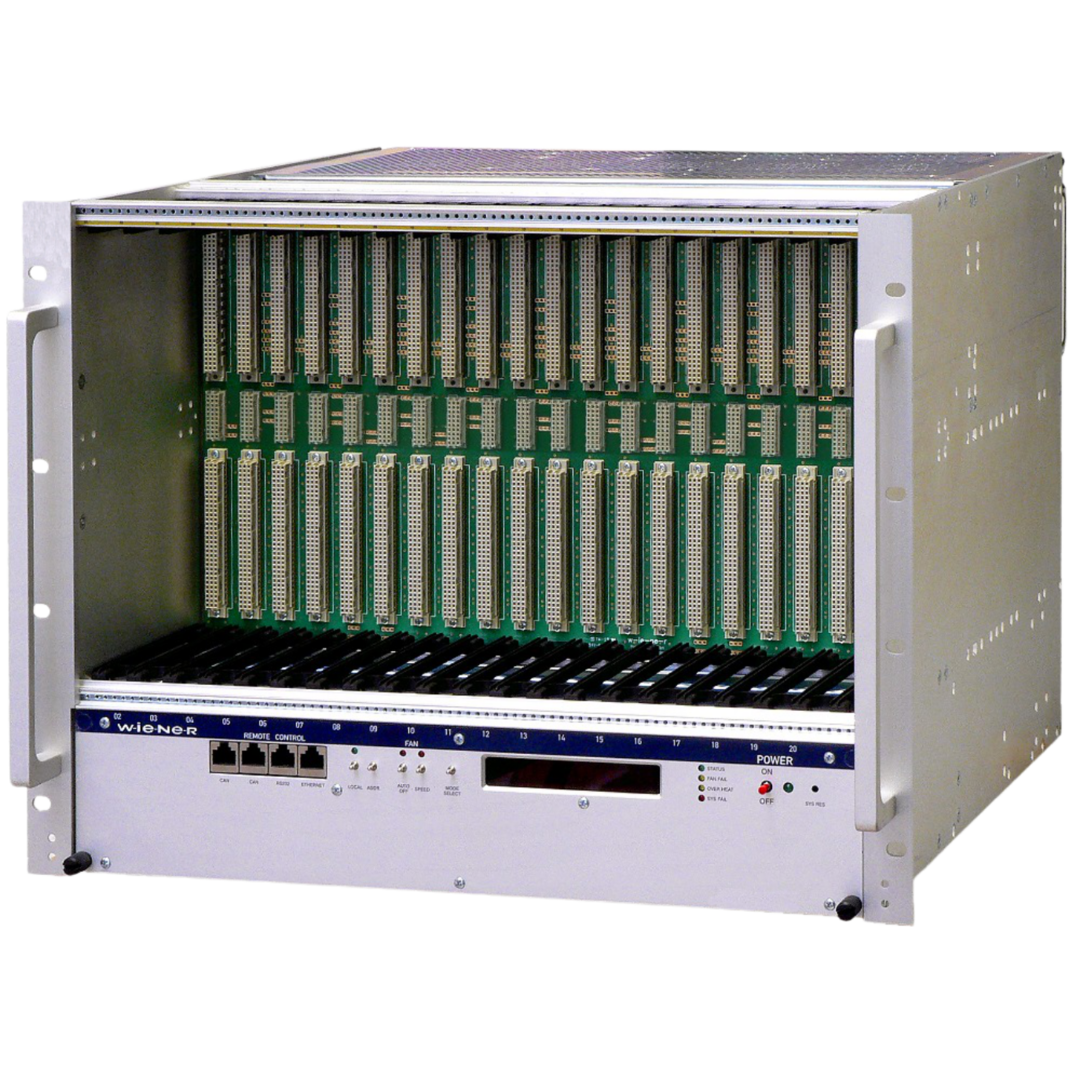

6U VME430-6021

21-slot 6U VME/VME430 full-size Chassis with low-noise PSU, modular fan tray, and Ethernet monitoring.

Specifications

Mechanics: 6U × 160 mm, IEEE 1101.10 compliant, EMC/ESD-protected
Slots: 21 VME/VME430 (J1/Jaux/J2)
Power Supply: up to 1000 W, low-noise microprocessor-controlled
Ripple: typ. < 10 mV(pp) or < 3 mV(rms)
Interfaces: Ethernet, RS232, CAN-bus
Cooling: front 2U fan tray, temperature-controlled

Download Datasheet

The VME430-6021 full-size Chassis is designed for advanced VME/VME430 installations in data acquisition, beamline control, and instrumentation. It accommodates up to 21 6U × 160 mm modules in a rugged IEEE 1101.10 compliant chassis with enhanced EMC and ESD protection. The system integrates a microprocessor-controlled low-noise power supply with outstanding ripple performance and a front-mounted fan tray with intelligent speed control, ensuring optimal airflow. Remote monitoring via Ethernet, RS232, and CAN-bus enables full diagnostic and control functions. The modular architecture consisting of bin, fan tray, and PSU ensures long-term reliability.

Features

Mechanical Design: IEEE 1101.10 compliant enclosure with EMC/ESD shielding
Backplane: Monolithic 21-slot VME430, 10-layer PCB, active termination
Cable Management: Front/rear covers, routing ducts, rear transition access
Monitoring & Control: Microprocessor-based system with LEDs and Ethernet remote interface
Electrical Protection: Crowbar overvoltage, undervoltage shutdown, overload and overheat protection
Compliance: CE conformity, EN 60950, ISO 380, VDE 0805, UL 1950
Operating Conditions: 0–50 °C without derating, storage –30 °C to +85 °C
