/ 6U cPCI 395 Mini Chassis

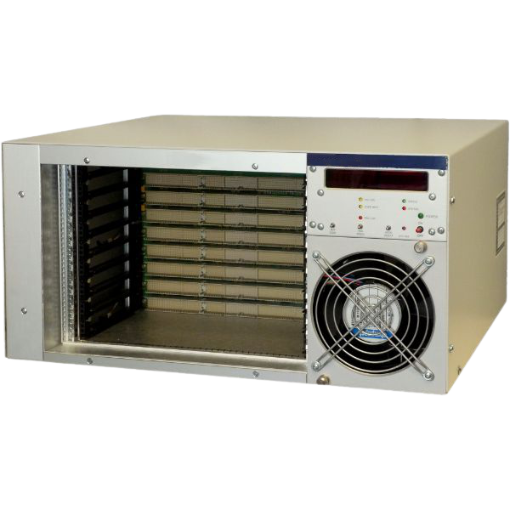

6U cPCI 395 Mini Chassis
Small 6U crate with 9 slots, redundant hot-swap PSU and integrated shelf management, perfect for labs and space-limited setups.
Specifications
- 6U × 160 mm, 9-slot cPCI/PXI/PXIe backplane
- Redundant 250 W PSU modules, hot-swap
- Input 100–240 VAC autoranging
- High-RPM fan tray (1,200–6,200 RPM)
- Shelf manager via Ethernet/USB
Compact mini-crate with advanced monitoring and redundant hot-swap PSUs. Ideal for labs and test systems where space-saving, reliability, and monitoring are essential.
Features
| Features | 9-slot hybrid cPCI/PXI/PXIe backplane Redundant hot-swap PSU Remote monitoring via Ethernet/USB Programmable protection features Flexible mounting options |
Downloads
技术参数
6U cPCI 395 Mini Chassis Datasheet
[ 6u-cpci-395-mini-chassis.pdf, 290.04 KB, Nov.04.2025 ]
参考手册
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
