2.5"-SBC-AML/ADN

2.5" (pITX) Single Board Computer with Intel® Atom® x7000(R)E Series, Intel® Core™ i3 N-Series & Intel® N-Series Processors
Specifications
Coming soon
  • Upgraded processing and graphics performance + faster AI inference capability
  • Next-gen LPDDR5 memory with up to 4800 MT/s data transfer rate
  • DP Alt Mode over USB-C support to carry video / audio, data & power over a single port
  • Wide input voltage range for more application environments
  • Hardware-based security for data protection and reliable authentication
Download Datasheet

Ideal for ultra-compact or portable IoT edge systems

2.5"-SBC-ADN is a 2.5" single board computer in Pico-ITX form factor powered by Intel® Atom® x7000RE Series (codenamed Amston Lake), Intel® Atom® x7000E Series, Intel® Core™ i3 N-Series and Intel® N-Series (codenamed Alder Lake N) processors integrated with Intel® UHD Graphics Gen12 as well as next-gen high-speed LPDDR5 memory. Thus, it can deliver upgraded performance, enhanced media transcoding and faster AI inference, making it an ideal baseboard to be integrated into an ultra-compact or portable IoT edge system or an all-in-one solution for a variety of applications, such as smart retail, industrial automation, healthcare, video processing and oce automation.

Features

Processor [Standard]
Intel® Atom® x7211RE (2C, 6M, 1.0/3.2GHz, 6W)
Intel® Atom® x7433RE (4C, 6M, 1.5/3.4GHz, 9W)
Intel® Atom® x7835RE (8C, 6M, 1.3/3.6GHz, 12W)
Intel® Core™ i3-N305 (8C, 6M, 1.8/3.8GHz, 9←15W)
Intel® N97 (4C, 6M, 2.0/3.6GHz, 12W)
[Project]
Intel® Atom® x7213RE (2C, 6M, 2.0/3.4GHz, 9W)
Intel® Atom® x7211E (2C, 6M, 1.0/3.2GHz, 6W)
Intel® Atom® x7213E (2C, 6M, 1.7/3.2GHz, 10W)
Intel® Atom® x7425E (4C, 6M, 1.5/3.4GHz, 12W)
Intel® N50 (2C 6M, 1.0/3.4GHz, 6W)
Intel® N200 (4C, 6M, 1.0/3.7GHz, 6W)
Main Memory 4 GByte / 8 GByte / 16 GByte LPDDR5 4800 memory down
Graphics Controller Intel® UHD Graphics Gen12
Display 1x eDP (4096 x 2160 @ 60 Hz)
2x DP (4096 x 2160 @ 60 Hz, 1x Full-size DP on rear, 1x DP USB-C on rear)
Triple Display Support
Ethernet Controller Intel® I226-V/IT
Ethernet 2x 2.5 GbE LAN (RJ45 on rear)
TSN support for models with Atom® processors
USB 2x USB 3.2 Gen 2 Type A (on rear)
1x USB 3.2 Gen 2 Type C (on rear, w/ DP & PD 5 V / 3 A, except Atom® x7000RE)
1x USB 3.2 Gen 1 Type C (on rear, w/ DP & PD 5 V / 3 A, only Atom® x7000RE)
2x USB 2.0 (by header)
Serial Ports 2x RS232 (default) / RS232/422/485 (optional) (by header, Tx / Rx only for RS232 signal)
Digital Inputs (DI) 4x DI (by wafer)
Digital Outputs (DO) 4x DO (by wafer)
eMMC 32 GByte / 64 GByte / 128 GByte eMMC
Expansion 1x M.2 Key B (Type 2242/3042/3052/2280, w/ PCIe x2 / USB 2.0 / SATA / UIM)
1x M.2 Key E (Type 2230, w/ PCIe x1 / USB 2.0 / CNVi (Atom® x7000RE does not support CNVi))
1x SIM Card Holder (by Wafer)

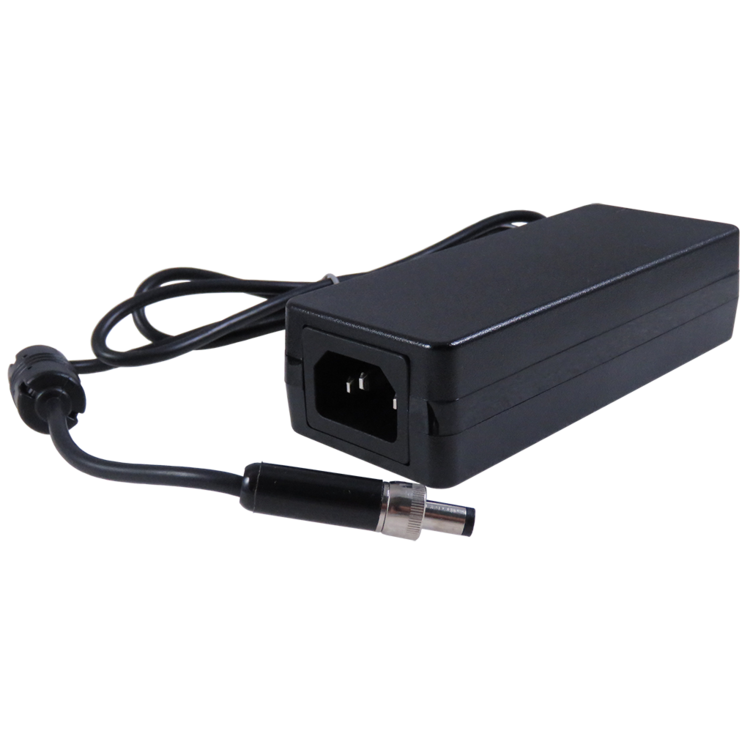

Input Voltage DC 9 V ~ 20 V
Power connector 1x2-pin pitch 1.25 mm Wafer
BIOS AMI uEFI BIOS w/ 256 Mb SPI Flash
Watchdog Programmable WDT to generate system reset event
System Monitoring Voltages
Temperatures
Real Time Clock Processor integrated RTC
TPM TPM 2.0 Support (Infineon SLB 9672)
FP Header 1x Header for Power Button, Reset Button, Power LED & SATA LED
Form Factor Pico-ITX (100 mm x 72 mm / 3.94" x 2.83")
Operating Temperature 0 °C~ 60 °C / 32 °F ~ 140 °F (Standard)
-40 °C ~ 85 °C / -40 °F ~ 185 °F (Extreme)
Storage Temperature -20 °C ~ 80 °C / -4 °F ~ 176 °F (Standard)
-55 °C ~ 85 °C / -67 °F ~ 185 °F (Extreme)
Humidity 0 % ~ 95 %
Compliance CE Class B, FCC Class B, ICES Class B, UKCA, UR (UL Recognized)

Downloads

技术参数

2.5"-SBC-AML/ADN Datasheet
Revision 20241211, December 10, 2024
[ 2d5-sbc-aml-adn-datasheet-20241210.pdf, 2.14 MB, Dec.11.2024 ]

参考手册

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Tech Spec Sheet

2.5" SBC Tech Spec Sheet
Revision 20240807, August 7, 2024
[ 2d5-sbc-tech-spec-sheet-20240807.pdf, 6.09 MB, Nov.04.2024 ]

Tech Specs SBC 候选发布版本(RC)
Revision 20241014, October 14, 2024
[ 3d5-sbc-tech-spec-sheet-20241014.pdf, 19.83 MB, Nov.04.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

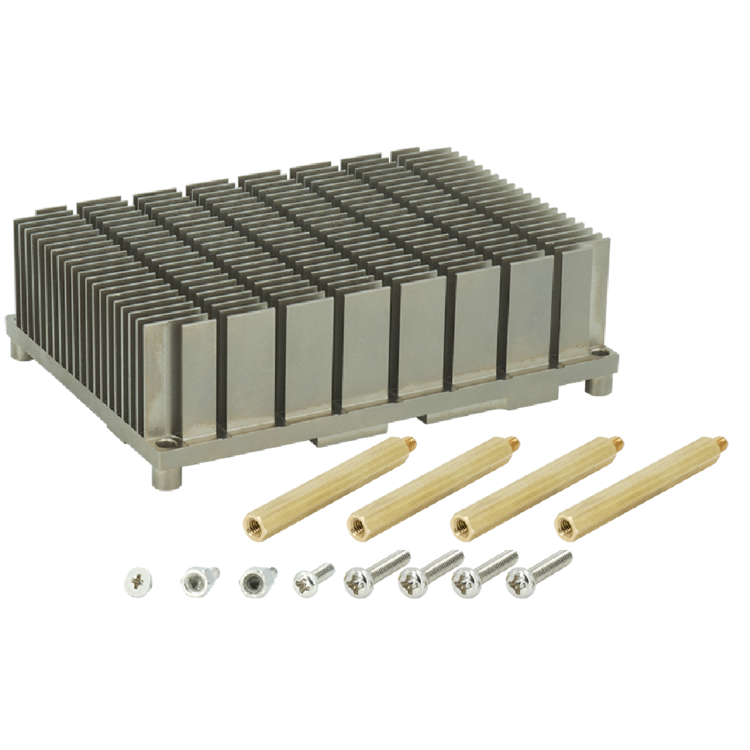

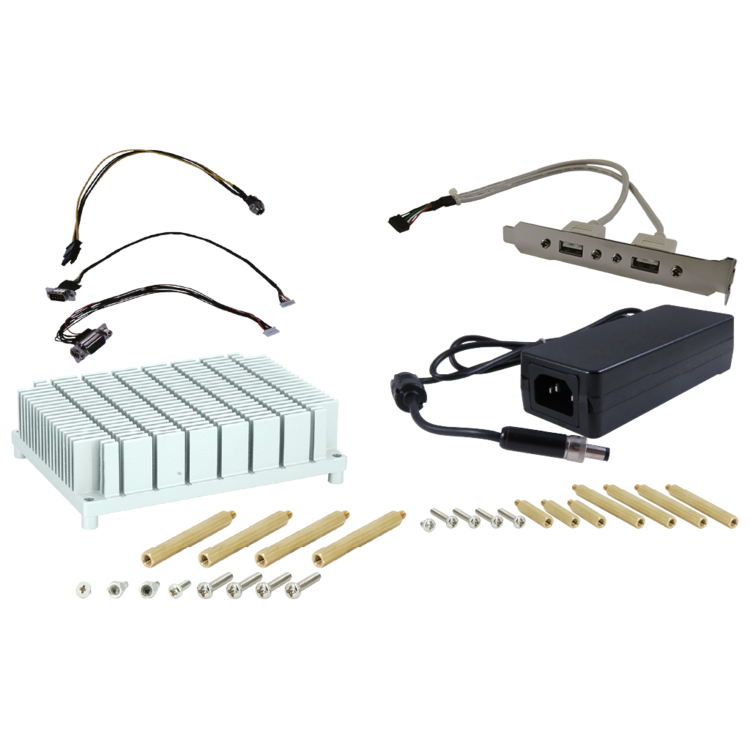

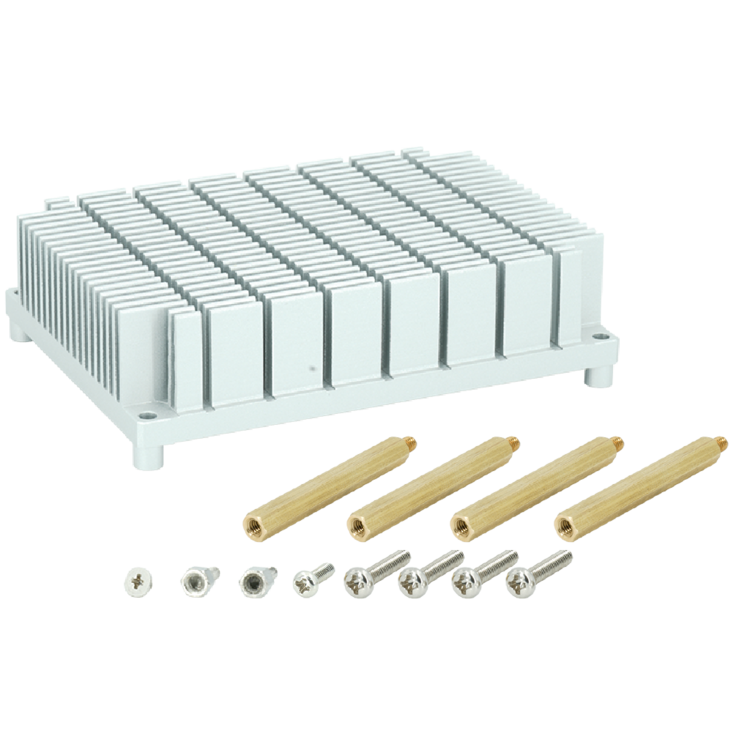

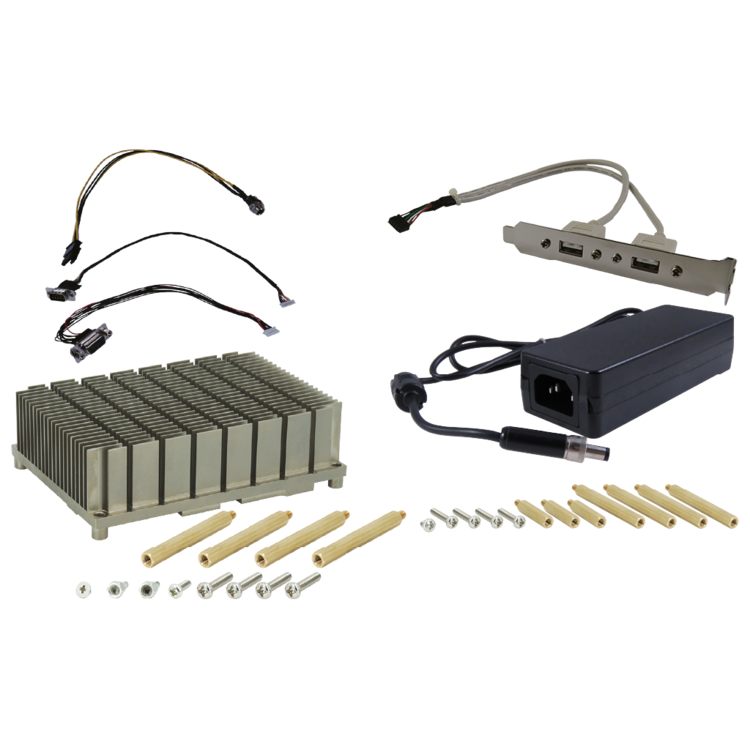

Variants

2.5"-SBC-ADN-1-i3-N305
Intel® Core™ i3-N305, Intel® I226-V LAN Chip, 16 GByte LPDDR5, 128 GByte eMMC, 2x RS232/422/485, Operating Temperature: 0 °C ~ 60 °C (project based)
2.5"-SBC-ADN-3-N97
Intel® N97, Intel® I226-V LAN Chip, 8 GByte LPDDR5, 64 GByte eMMC, 2x RS232, Operating Temperature: 0 °C ~ 60 °C
2.5"-SBC-ADN-4-N97
Intel® N97, Intel® I226-V LAN Chip, 8 GByte LPDDR5, 128 GByte eMMC, 2x RS232, Operating Temperature: 0 °C ~ 60 °C
2.5"-SBC-ADN-5-i3-N305
Intel® Core™ i3-N305, Intel® I226-V LAN Chip, 8 GByte LPDDR5, 128 GByte eMMC, 2x RS232, Operating Temperature: 0 °C ~ 60 °C
2.5"-SBC-ADN-6-N97
Intel® N97, Intel® I226-V LAN Chip, 4 GByte LPDDR5, 64 GByte eMMC, 2x RS232, Operating Temperature: 0 °C ~ 60 °C (project based)
2.5"-SBC-AML-0-x7211RE-XT
Intel® Atom® x7211RE, Intel® I226-IT LAN Chip, 8 GByte LPDDR5, 64 GByte eMMC, 2x RS232, Operating Temperature: -40 °C ~ 85 °C
2.5"-SBC-AML-1-x7433RE-XT
Intel® Atom® x7433RE, Intel® I226-IT LAN Chip, 8 GByte LPDDR5, 128 GByte eMMC, 2x RS232, Operating Temperature: -40 °C ~ 85 °C
2.5"-SBC-AML-2-x7835RE-XT
Intel® Atom® x7835RE, Intel® I226-IT LAN Chip, 16 GByte LPDDR5, 128 GByte eMMC, 2x RS232, Operating Temperature: -40 °C ~ 85 °C
2.5"-SBC-AML-3-x7835RE-XT
Intel® Atom® x7835RE, Intel® I226-IT LAN Chip, 16 GByte LPDDR5, 128 GByte eMMC, 2x RS232/422/485, Operating Temperature: -40 °C ~ 85 °C (project based)
