SMARTCASE™ S520

Chassis Kit Solution for D3654-B/D3664-B mSTX

Mouseover Zoom loading...

Specifications

Ultra-Compact Design
36 x 147 x 165 mm
Front & Rear USB
Horizontal or Vertical Operation
VESA- and Wall Mount Option

Download Datasheet

The SMARTCASE™ S520 was developed for customers with a need for higher computing power in a very small package. Two different motherboards of the Extended Lifecycle Series can be used: The Kontron D3654-B mSTX and the Kontron D3664-B mSTX support the 8th and 9th generation Intel® Core™ i processors with LGA1151 socket. A socketed CPU offers enormous scalability from Intel® Celeron up to Core™ i7 CPUs. It has an overall height of 36mm and a housing volume of only 0.87 litres and can be used in horizontal and vertical mode.

Downloads

技术参数

Datasheet SMARTCASE™ S520
[ smartcase-s520.pdf, 2.06 MB, Apr.22.2022 ]

参考手册

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

Tech Spec Sheet

Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 11.74 MB, Sep.11.2023 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

Active Cooler SMARTCASE™ S520 S26361-F5000-C012		Active cooler suitable for D3664-B and related SMARTCASE™ S520 chassis

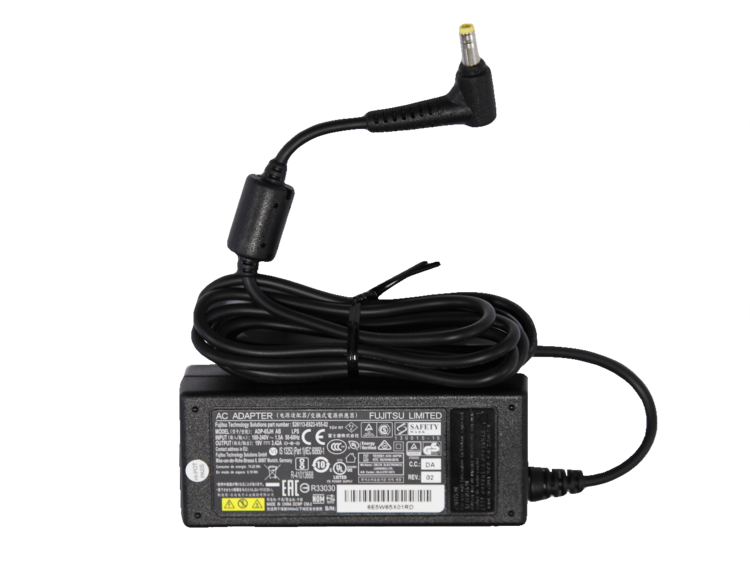

AC Adapter S26361-F5000-P006		19V / 3.42A, 65W - w/o power cord
SATA&Power Cable S26361-F5000-K012		130mm, for optional SATA HDD/SSD
WLAN Kit for SMARTCASE™ S500/S520 S26361-F5000-W002		WLAN Module Intel 9260 NON VPRO, left(gray)/right(black) Antenna (incl. cable)
WLAN Kit for SMARTCASE™ S500/S520 S26361-F5000-W005		WLAN Module Intel 9260 NON VPRO, left(gray)/right(black) Antenna (incl. cable)
Wall Mount Bracket for SMARTCASE™ S520 S26361-F5000-X001		20x Bracket (for 10 chassis) incl. Screws
VESA mount SMARTCASE™ S5xx S26361-F5000-X002		"E-Line bracket" for D3664-B and D3654-B
DC-In Holder for SMARTCASE™ S520 S26361-F5000-X003		10 x Holder (for 10 chassis) incl. Screws
